The Project has been commissioned by Maidstone Borough Council to develop Innovation Centre on the Kent Medical Campus. The innovation centre is a four story office block, comprising of meeting rooms, working spaces, hot desking areas and conference space.

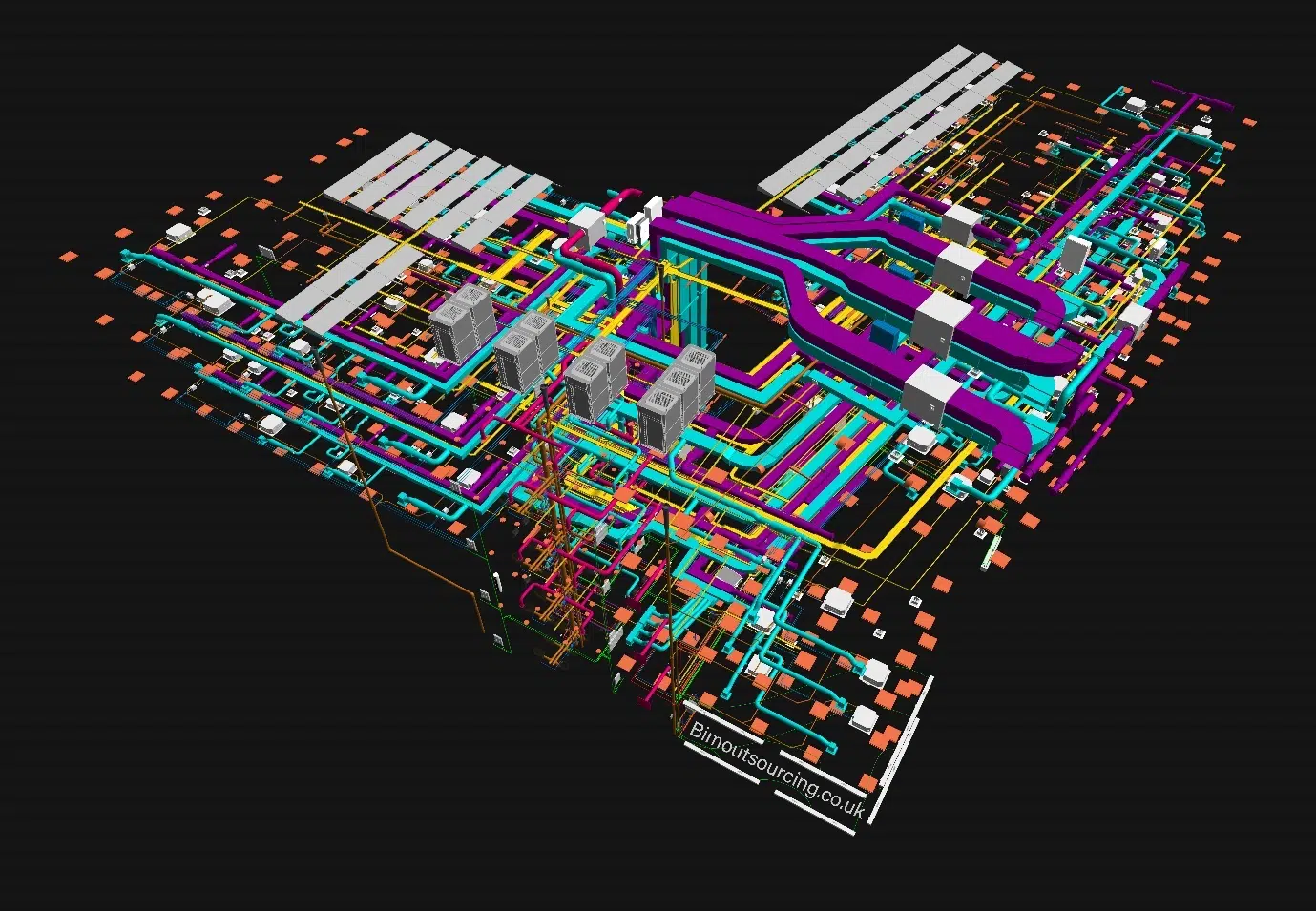

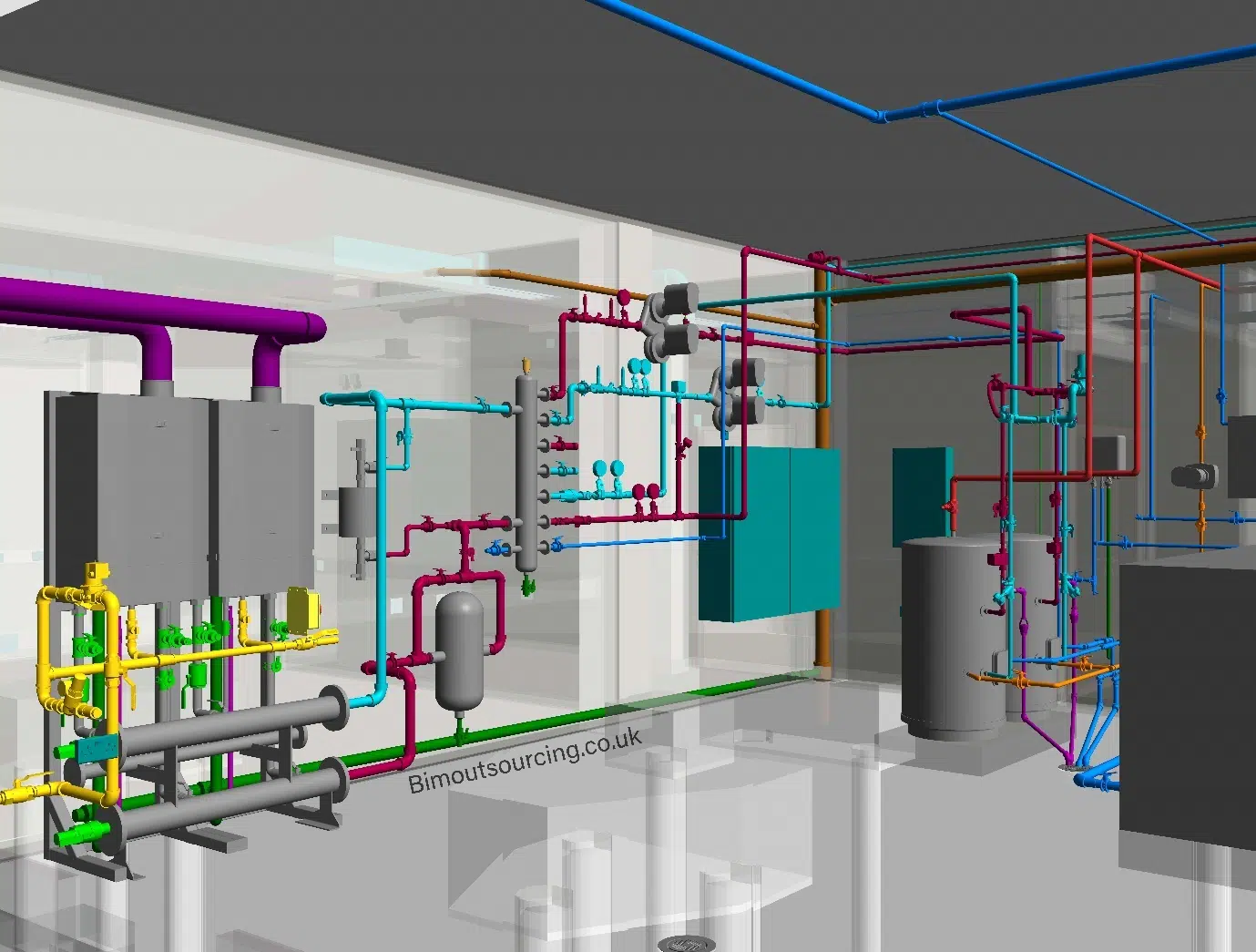

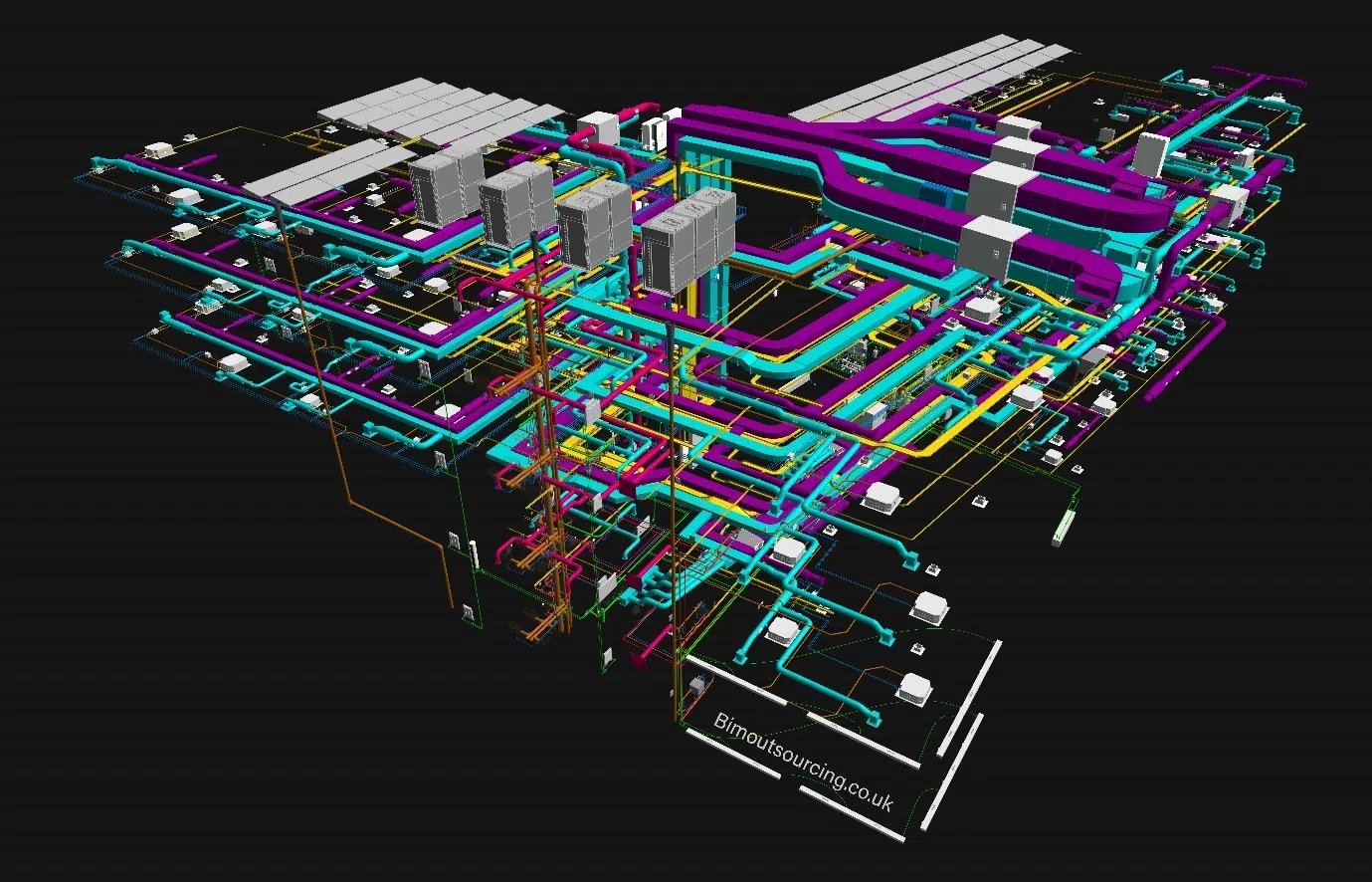

BIM Outsourcing delivered MEP BIM model of KMC Innovation Centre to RIBA stage 5. The team of 4 Engineers produced spatially coordinated models of HVAC systems, Electrical systems, Plant rooms and Electrical room. Also produced detailed 2D drawings in PDF and DWG format, showing the annotations, dimensions and tagging details. We worked closely with the M&E consultants and contractors for clash resolution among various services and coordination. All COBie required parameters are made available and extension sheet is linked in the model. Systems connections were developed between destination and sources of all services.

No items found.

Explore All projects

What happens after you get in touch?

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Man in a dark suit and white shirt standing next to a screen displaying the BIM Outsourcing logo on a white background.

No pushy sales calls just a quick, helpful chat with our UK-based team to understand your project and see if we’re the right fit.

Watch Video

The Project has been commissioned by Maidstone Borough Council to develop Innovation Centre on the Kent Medical Campus. The innovation centre is a four story office block, comprising of meeting rooms, working spaces, hot desking areas and conference space.

BIM Outsourcing delivered MEP BIM model of KMC Innovation Centre to RIBA stage 5. The team of 4 Engineers produced spatially coordinated models of HVAC systems, Electrical systems, Plant rooms and Electrical room. Also produced detailed 2D drawings in PDF and DWG format, showing the annotations, dimensions and tagging details. We worked closely with the M&E consultants and contractors for clash resolution among various services and coordination. All COBie required parameters are made available and extension sheet is linked in the model. Systems connections were developed between destination and sources of all services.

30,000 m2, 3 storey data center in london

Location:London - England, UK

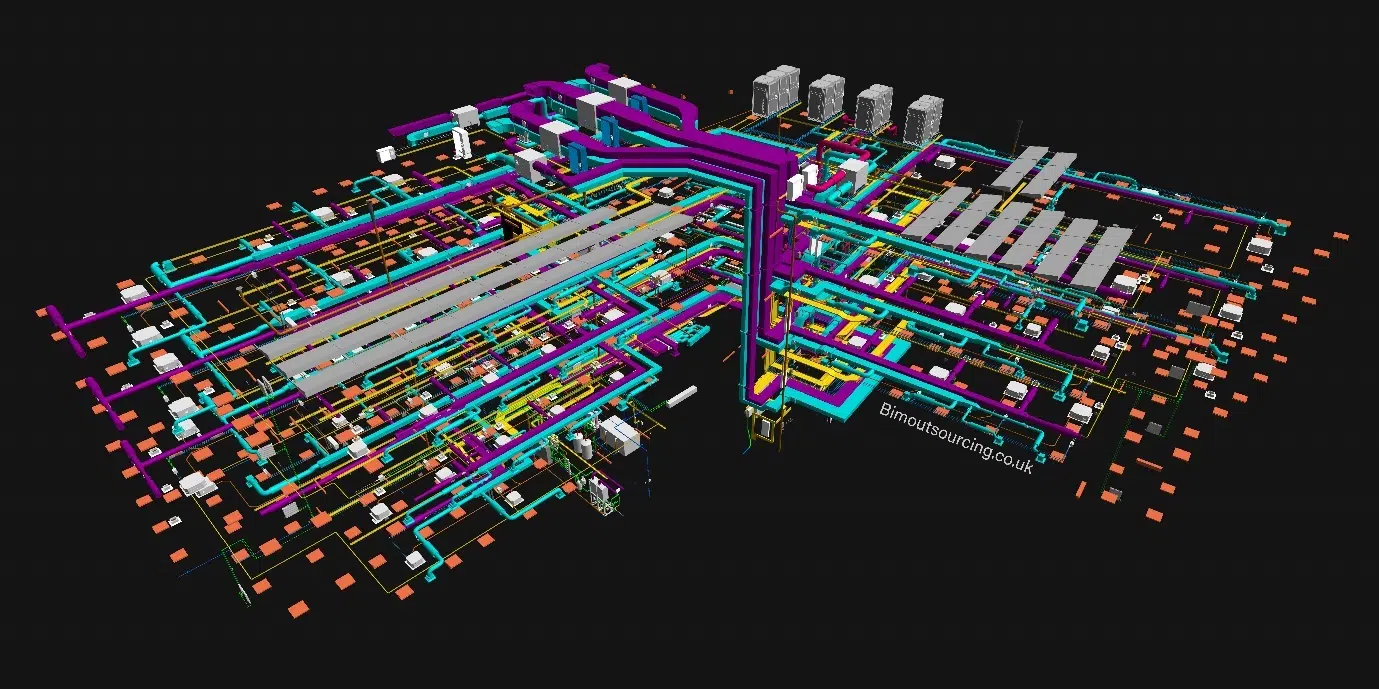

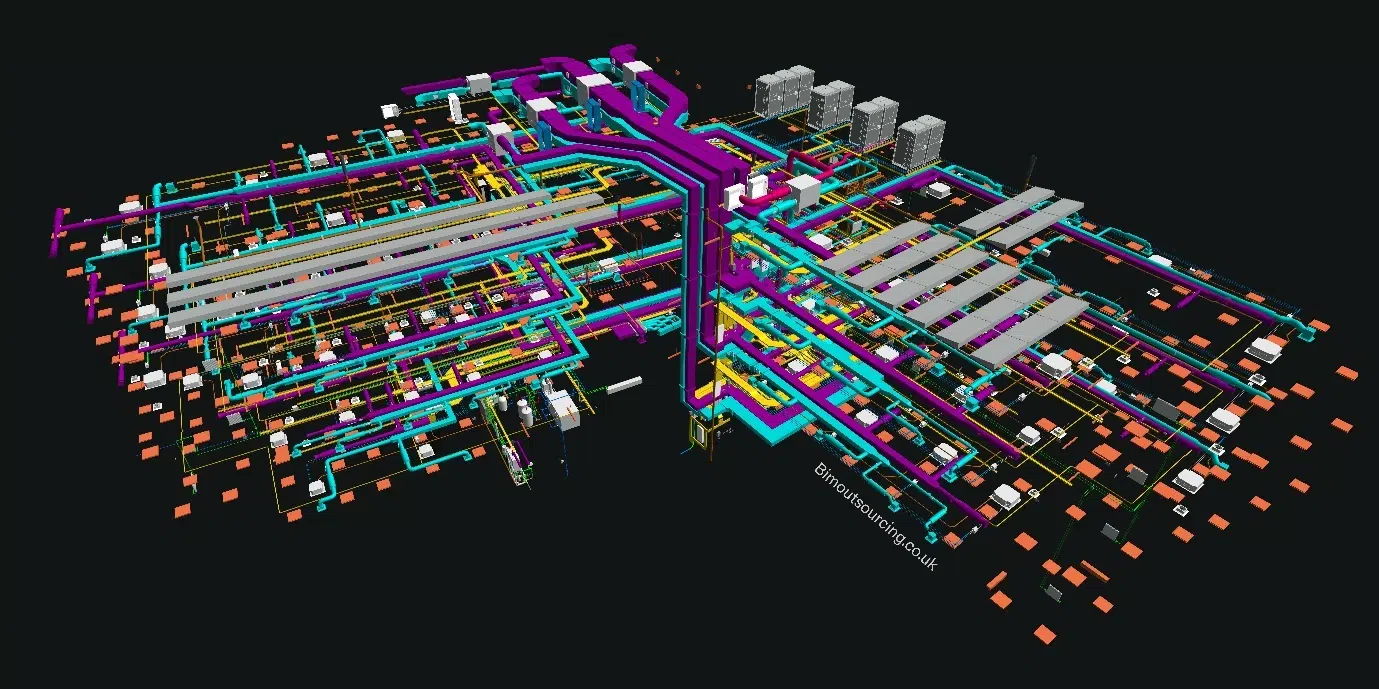

  • Produced detailed Electrical BIM Model for the State-Of-Art data center, adhering to LOD 400 and 500. Models facilitates the seamless coordination with other building disciplines, ensuring efficient installation and future scalability.

  • Developed electrical installation and layout drawings, focusing on power distribution and connectivity for mission-critical equipment. Drawings were complied with local regulations, optimized performance and supported requirement for data center infrastructure.

  • Our BIM team delivered security and access control layout drawings, strategically placing surveillance systems and access points to ensure protection of sensitive areas.

Rows of black server cabinets with yellow overhead cable trays in a clean data center room.

tIER - 3 dATa CENTER IN eNGLAND uk

Location: England, UK

  • Developed detailed BIM models for both electrical and telecom systems, ensuring seamless integration and coordination between the two trades.

  • Produced engineering, rack layouts and elevation drawings, enabling cleat visualization of component placement and alignment.

  • Managed the coordination of all project data within a Common Data Environment (CDE), ensuring that all teams had access to up-to-date and accurate information of data center facility.

A corridor of server racks inside a data center with gray metal doors and green vertical supports.

ict cENTER eNGLAND

Location:England, UK

  • Developed detailed BIM models for plumbing and cooling systems, ensuring accurate design and integration with other building services.

  • Developed fabrication drawings for mechanical services, detailing components like ducts, pipes and equipment. These drawings were critical for accurate on-site construction and system assembly.

  • Bill of material were provided to the client and site team including pipes, ducts, fittings, fixtures, and mechanical equipment. This facilitate accurate procurement, budgeting and streamlined project management.

Rows of white server racks in a data center with exposed ceiling cables and fluorescent lighting.

AS-BUILT MODELLING OF DATA CENTER

Location:Stafford, England, UK

  • As built drawings of complete facility for M/E disciplines.

  • 3D modelling, coordination and BIM management.

  • Produced facility management and operations data in COBie format.

  • Submitted design data in open formats like IFC, DWG and PDF to ensure interoperability.

Row of gray server racks in a bright data center corridor with yellow cable organizers on top.
